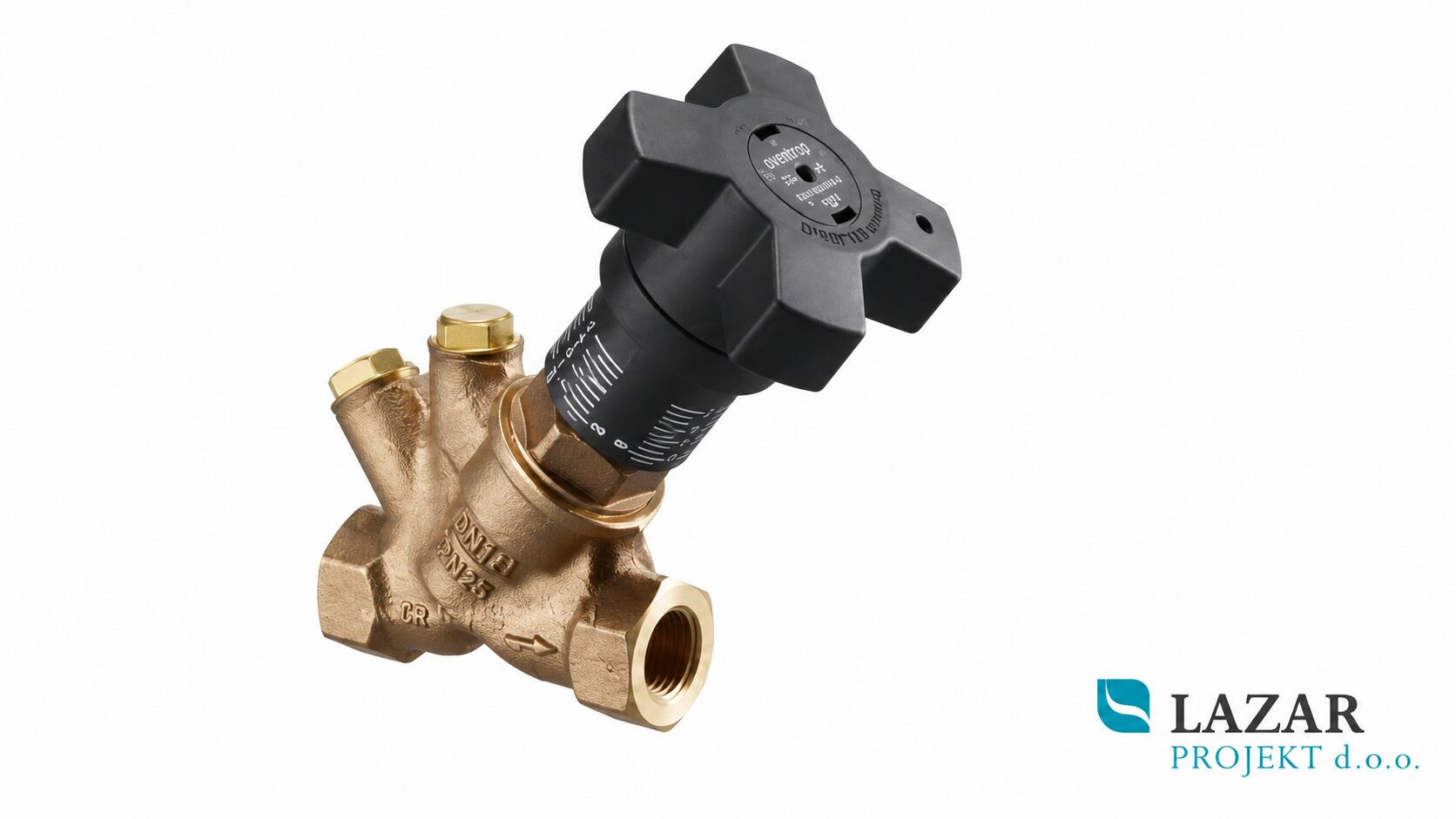

Oventrop 1060104 HydroControl VTR Y-pattern regulating valve DN 15, Rp 1/2

Oventrop 1060104 HydroControl VTR is a bronze Y-pattern regulating and balancing valve for hydraulic balancing of heating and cooling systems. It is designed for installation in supply or return pipework where flow adjustment or flow limitation is required in individual system sections.

The valve has a nominal size DN 15, Rp 1/2 female threaded connection and pressure rating PN 25. The design allows secured, continuously variable fine presetting, and the setting can be read directly, independently of the handwheel position. All functional elements are accessible from the top of the valve, making adjustment and servicing easier.

The valve body and bonnet are made of bronze, while the spindle and disc are made of dezincification-resistant brass. The valve disc seal is made of PTFE, and a double O-ring seal supports reliable valve operation. The openings are closed with blind plugs.

The packaging may be of lower quality or show signs of storage or transport damage. This does not affect the technical functionality of the item. Before ordering, we recommend checking the connection size, nominal dimension, pressure rating and suitability for the existing system.

Technical data

Manufacturer: Oventrop
Item number: 1060104
Model: HydroControl VTR
Product type: Y-pattern regulating / balancing valve
Nominal size: DN 15
Connection: Rp 1/2 female thread
Pressure rating: PN 25
Body material: bronze
Version: with blind plugs
Presetting: continuously variable fine presetting
Installation: supply or return pipe
Application: heating and cooling systems
