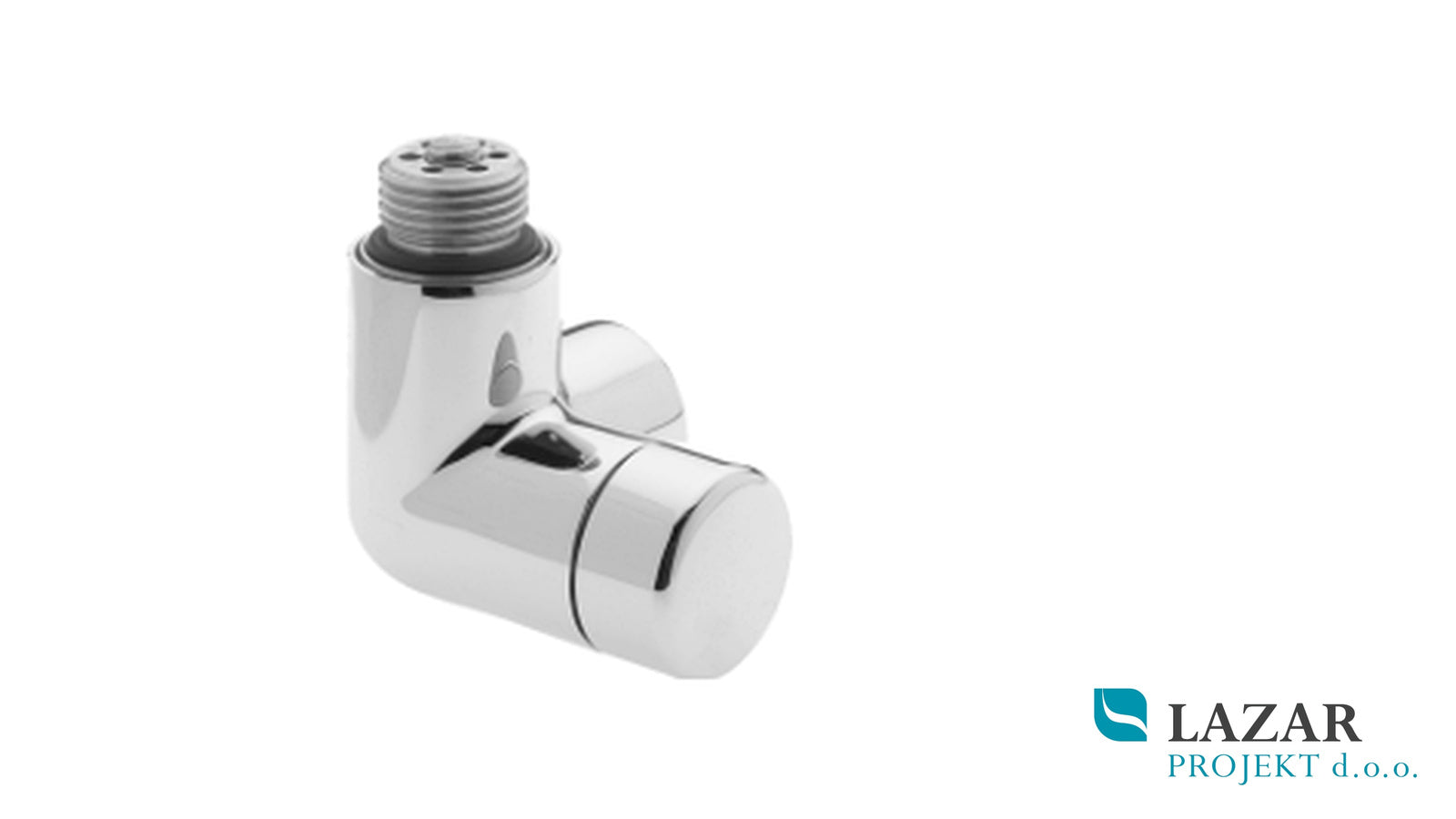

Danfoss RLV-X left-hand radiator lockshield valve, INOX – 013G4063
Danfoss RLV-X 013G4063 is a radiator lockshield and regulating valve in a left-hand version, designed for bathroom, tubular and designer radiators. It is part of the Danfoss X-tra Collection, which is designed for compact and visually attractive installation underneath the radiator.
The valve has an INOX finish that visually matches radiators and other equipment with a stainless-steel appearance. The valve body is made of brass, which means that the INOX designation refers to the finish and not to a solid stainless-steel construction.
The valve allows an individual radiator to be isolated and the flow rate to be adjusted. The radiator can also be filled or drained using a suitable service fitting. The service fitting is not included.
The valve has a nominal size of DN 15, a G 1/2 A radiator connection and a G 1/2 system connection. The Kvs value is 0.60 m³/h.
The maximum operating pressure is 10 bar, the maximum differential pressure is 0.6 bar, the test pressure is 16 bar, and the maximum medium temperature is 120 °C.
The valve is equipped with a self-sealing radiator tailpiece. The O-rings are made of EPDM, which means that mineral oils or greases must not be used during installation.
Technical specifications
- Manufacturer: Danfoss
- Series: X-tra Collection
- Model: RLV-X
- Product code: 013G4063
- Product type: radiator lockshield and regulating valve
- Version: for left-hand installation
- Surface finish: INOX – stainless-steel appearance
- Nominal size: DN 15
- Radiator connection: G 1/2 A
- System connection: G 1/2
- Kvs value: 0.60 m³/h
- Maximum operating pressure: 10 bar
- Maximum differential pressure: 0.6 bar
- Test pressure: 16 bar
- Maximum medium temperature: 120 °C
- Body material: Ms 58 brass
- O-rings: EPDM
- Shut-off element: NBR
- Functions: shut-off, flow adjustment and provision for filling and draining the radiator
Important information
The valve is designed for left-hand installation. Before ordering, check the radiator connection direction and the position of the supply and return pipes.
The product is not supplied in its original packaging. It will be suitably protected and securely packed before dispatch.
