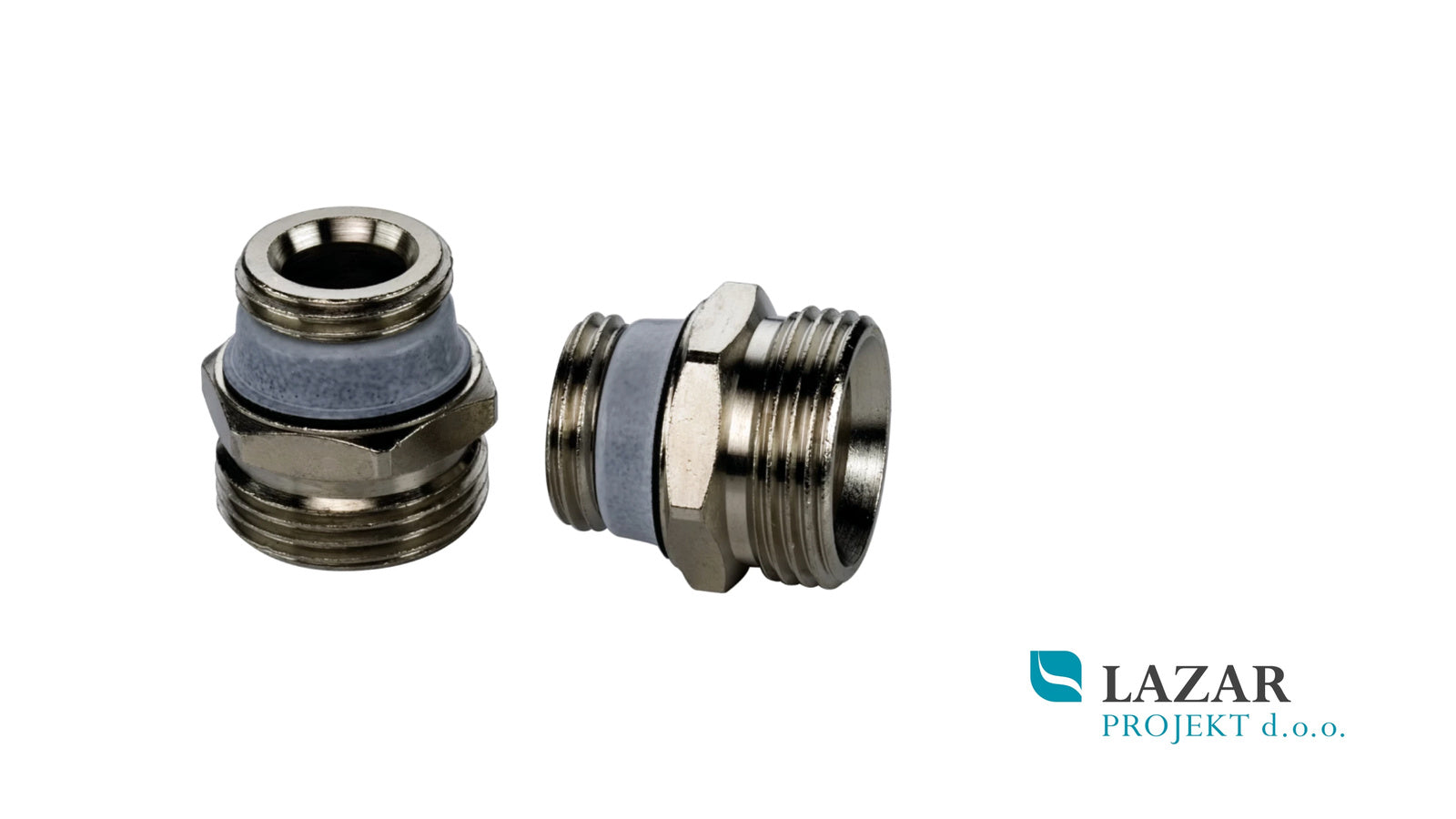

Simplex F10391 D5 connection set G 1/2 × G 3/4 Eurocone – 2 pieces

Simplex F10391 D5 is a set of two straight connection nipples designed for connecting a radiator with an integrated valve to a compatible valve block or heating fitting.

Each nipple has a G 1/2 parallel male pipe thread on the radiator side and a G 3/4 Eurocone parallel male connection on the fitting side.

The nipples are manufactured from nickel-plated brass and feature a self-sealing design with EPDM sealing material.

• brand: Simplex,
• model: D5,
• product code: F10391,
• application: radiators with an integrated valve,
• radiator-side connection: G 1/2,
• nominal size: DN 15,
• fitting-side connection: G 3/4 Eurocone,
• nominal size: DN 20,
• material: nickel-plated brass,
• sealing material: EPDM,
• design: self-sealing,
• maximum operating pressure: 10 bar,
• continuous medium temperature: 0–110 °C,
• maximum short-term temperature: 130 °C,
• nipple length: approximately 28 mm,
• spanner size: 26 mm,
• set contents: 2 connection nipples,
• sales unit: one set.

Important: A G 3/4 Eurocone connection is not the same as a G 3/4 flat-sealing connection. Check both connections, the sealing method and the available installation length before ordering.

Do not damage the factory-fitted sealing element during installation. Check all connections for leaks after installation.
